FOLSOM SMARTVIEW
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 08, 2015 - Viewed 208 times

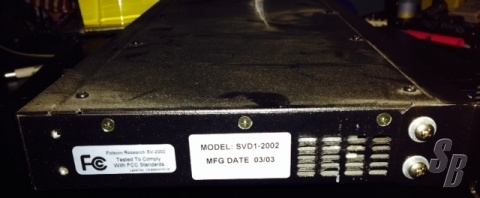

FOLSOM SVD1-2002 (YOM: 2003) (S#: 095) GOOD (7-8)

FEATURES: ANALOG COMPUTER VIDEO INPUT
CONNECTORS: HD-15 FEMALE CONNECTOR, INPUT AND LOOP-THROUGH

ANALOG VIDEO: RGB OR Y, PB, PR, WITH HORIZONTAL SCAN RATES OF UP TO 110KHZ, RESOLUTIONS UP TO 1600X1280PIXELS.

SYNC FORMAT: SYNC-ON-VIDEO; SEPARATE C OR H, V
INPUT FORMAT: 2:1 INTERLACED OR NON-INTERLACED
TERMINATION: 75 OHM OR HIGH IMPEDANCE (SWITCH SELECTABLE)

GENLOCK INPUTCONNECTORS: BNC INPUT

FORMAT: NTSC OR PAL VIDEO (COMPOSITE VIDEO, BLACK BURST), 360 DEGREE SCH PHASE ADJUSTMENTTERMINATION: 75 OHM

OUTPUTS

CONNECTORS: COMPOSITE VIDEO (NTSC OR PAL) – BNC, COMPONENT VIDEO (BETACAM Y,PB,PR OR RGB) – BNC, S-VIDEO (Y/C) – DIN-4, DIGITAL VIDEO (SDI OR SERIAL DIGITAL COMPONENT 4:2:2 VIDEO) – BNC (OPTIONAL)
SYNC - BNC

FORMAT: USER SELECTABLE 525/60 OR 625/50 INTERLACED

RESOLUTION: 720 X 486 NTSC; 720 X 576 PAL

COMPOSITE VIDEO: NTSC OR PAL ENCODED COMPOSITE, 1 V P-P INTO 75 OHMS

COMPONENT VIDEO: USER SELECTABLE FORMAT –RGB VIDEO: RS170A OR CCIR VIDEO, USER SELECTABLE SYNC ON VIDEOBETACAM: Y,PB,PR, USER SELECTABLE SYNC ON VIDEO

S-VIDEO: Y/C
DIGITAL VIDEO (SDI OR D1): SERIAL DIGITAL COMPONENT 4:2:2 (OPTIONAL)SYNC: TTL – LEVEL COMPOSITE SYNC

PHYSICAL

HEIGHT: 1.75" (4.45CM); WIDTH: 17" (43.2 CM) OR 19 (48.3 CM)" WITH RACK-MOUNT OPTIONDEPTH: 10" (25.4 CM); WEIGHT: 9LBS (4.1 KG); SHIPPING WEIGHT: 17 LBS (7.7 KG)COOLING: FORCED AIR (MAINTAIN AT LEAST 1” OF CLEARANCE ON THE FRONT AND REAR OF THE UNIT)

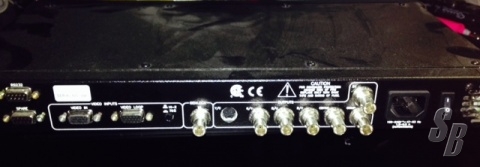

CONNECTORS: BNC – GENLOCK INPUT, D1, RGB/YUVHD-15 FEMALE – PC VIDEO

DIN-4 – Y/C
DB-9 FEMALE – RS232

EXTRAS: NO

MODIFICATIONS: NO

HISTORY: IT WAS USED WITH A SCREEN PRO SYSTEM ON CORPORATE EVENTS, IT WAS RACK MOUNTED

COMMENTS: NO

THIS UNIT WAS NEVER TOURED
