INLINE IN1403 (2000) (S#: 238773) GOOD (7-8)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 17, 2008 - Viewed 173 times

DESCRIPTION: INLINE IN1403 (2000) (S#: 238773) GOOD (7-8)

FEATURES: FEATURES

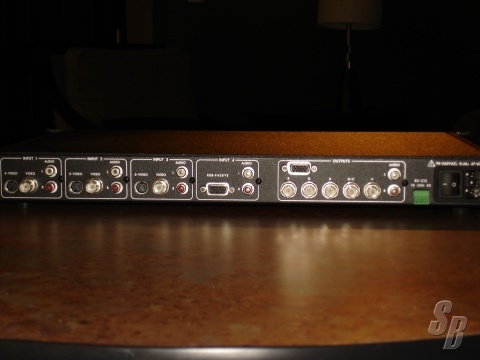

* INPUT: THREE COMPOSITE VIDEO ON FEMALE BNC OR S-VIDEO ON 4-PIN MINI DIN AND ONE PASS-THROUGH RGBHV ON 15-PIN HD CONNECTOR; STEREO AUDIO INPUTS ON RCA CONNECTORS

* OUTPUT: RGBHV ON A FEMALE 15-PIN HD CONNECTOR AND RGBHV ON FIVE FEMALE BNCS; STEREO AUDIO OUTPUT ON RCA CONNECTORS

* FOUR INPUT AUDIO AND VIDEO SWITCHING CAPABILITY — INPUTS ONE, TWO, AND THREE ACCEPT COMPOSITE VIDEO OR S-VIDEO; INPUT FOUR IS A VGA PASS-THROUGH 15-PIN HD CONNECTOR FOR A COMPUTER-VIDEO SIGNAL - PASSIVE WITH NO SCALING.

* SCALED OUTPUT RATES FROM 640X480 TO 1365X1024 — MULTIPLE OUTPUT RESOLUTIONS ALLOW THE IN1403 TO MATCH THE OPTIMAL OR NATIVE RESOLUTION OF VIRTUALLY ANY DISPLAY.

* DUAL OUTPUTS — BOTH OUTPUTS ON FIVE BNC CONNECTORS AND ONE 15-PIN HD CONNECTOR ARE ACTIVE SIMULTANEOUSLY, AND CAN DIRECTLY DRIVE TWO SEPARATE DISPLAYS.

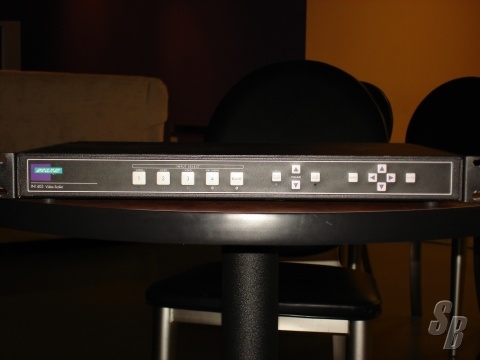

* ON-SCREEN MENUS FACILITATE ADJUSTMENT OF PICTURE CONTROLS

* 3:2 NTSC PULLDOWN DETECTION

* DIGITAL FREEZE FRAME — USEFUL FOR HIGH QUALITY STILL IMAGES IN APPLICATIONS THAT REQUIRE CLOSE EXAMINATION OF A SPECIFIC VIDEO FRAME, THE FREEZE FRAME FUNCTION CAN BE ENABLED OR DISABLED VIA FRONT PANEL OR RS-232 CONTROL.

* VIDEO BLANK — ONCE ENGAGED, THE OUTPUT SIGNAL GOES TO BLACK BUT THE SYNC SIGNALS CONTINUE, ENSURING THAT THE DATA DISPLAY DEVICE RETAINS SYNC LOCK. WHEN THE BLANK BUTTON IS PRESSED AGAIN, THE SWITCHER RETURNS TO THE LAST SELECTED INPUT.

* BLUE SCREEN — ALWAYS AVAILABLE, EVEN WHEN THE INPUT SIGNAL IS MISSING, THE BLUE SCREEN FEATURE PROVIDES A FULL SCREEN BLUE IMAGE FOR SET-UP AND TESTING PURPOSES, AND IS IDEAL FOR SETTING UP THE OUTPUT RESOLUTION, REFRESH RATE, AND POSITION SETTINGS, AND TO VERIFY CONNECTION TO THE OUTPUT DISPLAY DEVICE.

* ASPECT RATIO CONVERSION — PROPER IMAGE GEOMETRY CAN BE ACHIEVED BY USING THE ASPECT RATIO FEATURE OF THE IN1403. THE SCALER CAN HORIZONTALLY AND VERTICALLY RESIZE THE VIDEO IMAGE TO MATCH A SPECIFIED ASPECT RATIO, FILLING THE DISPLAY, AND IMPROVING THE OVERALL PERCEPTION OF THE DISPLAYED IMAGE.

* PICTURE CONTROLS INCLUDING HUE, COLOR, CONTRAST, BRIGHTNESS, GAMMA, SHARPNESS, IMAGE SIZE, IMAGE POSITION, AND EDGE BLANKING

* VOLUME CONTROL AND MUTE — CAN BE CONTROLLED VIA THE FRONT PANEL OR RS-232. UNIQUE VOLUME LEVELS CAN BE SAVED FOR EACH INPUT AND AUTOMATICALLY RECALLED EACH TIME AN INPUT IS SELECTED.

* QUAD STANDARD DECODER — THE IN1403 EMPLOYS AN ADVANCED THREE-LINE ADAPTIVE COMB FILTER AND A HIGH QUALITY VIDEO DECODER TO PROVIDE ACCURATE VIDEO DECODING FOR COMPOSITE VIDEO AND S-VIDEO SIGNALS IN NTSC 3.58, NTSC 4.43, PAL, AND SECAM VIDEO FOR WORLDWIDE COMPATIBILITY.

* RS-232 SERIAL CONTROL PORT — USING SERIAL COMMANDS, THE IN1403 CAN BE INTEGRATED INTO THIRD-PARTY CONTROL SYSTEMS.

* RACK-MOUNTABLE 1U, FULL RACK WIDTH METAL ENCLOSURE - RACK EARS INCLUDED

* INTERNAL INTERNATIONAL POWER SUPPLY — THE 100-240VAC, 50/60 HZ, AUTOSWITCHABLE INTERNAL POWER SUPPLY PROVIDES WORLDWIDE POWER COMPATIBILITY.

EXTRAS: POWER CORD, RACK EARS

MODIFICATIONS: NO MODIFICATIONS

HISTORY: THIS WAS USED IN A CHURCH FOR LIVE VIDEO.

COMMENTS: NOTHING WRONG WITH IT. WE JUST DID NOT NEED IT.

THIS UNIT WAS NEVER TOURED
