MARSHALL ELECTRONICS V-R72DP DUAL 7 INCH RACKMOUNT LCD
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 26, 2011 - Viewed 242 times

MARSHALL ELECTRONICS V-R72DP (YOM: 2011) (S#: TBD) LIKE NEW (9-10)

FEATURES: THE MARSHALL V-R72DP IS TWO HIGH RESOLUTION 7" MONITORS IN A SINGLE 19" WIDE RACK MOUNT HOUSING. THE MONITORS ARE DESIGNED TO DISPLAY NTSC/PAL SYSTEM VIDEO. THE RACK IS EQUIPPED WITH SIX LOOP THROUGH INPUTS THAT CAN BE ACCESSED THROUGH EITHER MONITOR. THE INDUSTRY STANDARD RACK MOUNT FRAMEWORK HAS THE SPECIAL MARSHALL FEATURE OF TILTING UP OR DOWN FOR VIEWING CONVENIENCE AND FOR ACCESS TO CABLING BEHIND THE MONITOR.

HIGH RESOLUTION MONITORS

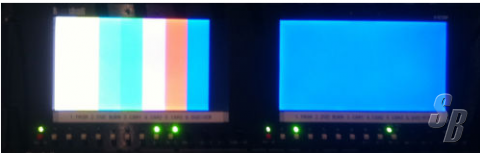

THE V-R72DP INCORPORATES 2 LCD MONITORS IN ONE RACK MOUNTABLE FRAMEWORK. THE SCREENS HAVE 800 X 480 PIXELS EACH. THE MONITORS CAN EACH BE SWITCHED BETWEEN 16:9 AND 4:3 ASPECT RATIO WITH A FRONT PANEL BUTTON. THE MONITORS ALSO EACH HAVE A COLOR BARS GENERATOR, BLUE GUN AND FRONT PANEL PICTURE CONTROL KNOBS. PICTURE LOOK SETTINGS CAN BE SAVED IN MEMORY FOR SPECIFIC APPLICATIONS.

DIGITAL TO ANALOG CONVERTER
THE V-R72DP OFFERS ANALOG INPUTS ONLY. THE ANALOG SIGNALS ARE DIGITIZED USING AN ADVANCED 10-BIT PROCESS TO ENSURE THERE IS NO DISTORTION. ALL VIDEO FORMATS ARE SCALED TO FIT THE SCREEN IN THE HIGHEST RESOLUTION USING AN ADVANCED LSI THAT INCORPORATES SOPHISTICATED INTERPOLATION TECHNIQUES ALONG PRECISE GAMMA CORRECTION TO PRODUCE THE BEST POSSIBLE IMAGES.

RACK MOUNTABLE
THIS DOUBLE MONITOR UNIT IS DESIGNED TO BE MOUNTED IN A STANDARD 19" INDUSTRIAL RACK. THE V-R72DP TAKES UP ONLY 3 RACK UNITS IN HEIGHT. THE ALL METAL HOUSING MAY BE TILTED IN THE RACK UPWARDS OR DOWNWARDS (ABOUT 90° IN EACH DIRECTION) FOR OPTIMUM VIEWING ANGLE. TFT LCD TECHNOLOGY ALLOWS FOR COMFORTABLE AND ACCURATE IMAGE VIEWING EVEN WHEN STANDING OFF TO EITHER SIDE.

SIX-WAY COMPOSITE INPUTS
THE V-R72DP CAN HANDLE UP TO SIX VIDEO SIGNALS AND DISPLAY THEM ON EITHER OF THE THE TWO MONITORS INDEPENDENTLY. THIS LOOP THROUGH TECHNOLOGY REDUCES THE COMPLICATION OF SPLITTING SIGNALS BETWEEN EACH LCD.

SPECIFICATIONS

VIDEO SYSTEM NTSC AND PAL WITH AUTO DETECT FEATURE
APPLICATION RACK MOUNT, CONTROL ROOM
LCD SIZE 7" DIAGONAL X 2
PICTURE ELEMENTS 800 X 480
INPUT AND OUTPUT CONNECTORS COMPOSITE VIDEO- BNC (X6 INPUT AND OUTPUT, BOTH MONITORS)
TALLY LIGHTS- 15-PIN (X 1)
POWER- COAXIAL (X 1 INPUT ONLY)
PICTURE CONTROLS COLOR
BRIGHTNESS
CONTRAST
TINT
REMOTE CONTROL NONE
POWER REQUIREMENTS 12 VOLTS DC
AC ADAPTER INCLUDED
POWER CONSUMPTION 3 AMPS
DIMENSIONS (WXHXD) 19.125 X 5.14 X 2.5"
48.5 X 13.5 X 6.35 CM
WEIGHT 5 LBS
2.3 KG

EXTRAS: MANUAL, POWER SUPPLY, AND DRY ERASE MARKER.

MODIFICATIONS: N/A

HISTORY: USED FOR 5 MONTHS KEPT CLEAN AND IN RACK FOR DURATION OF USE.

COMMENTS: ITEM IS IN EXCELLENT, LIKE NEW CONDITION.

THIS UNIT WAS NEVER TOURED
