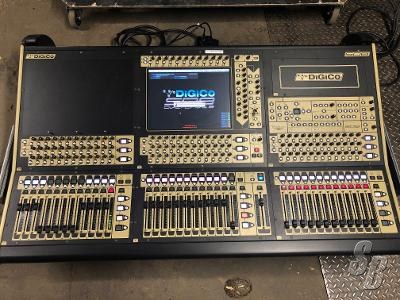

For Sale: DIGICO SD8 W/ ROADCASE, 48 X16 MADI RACK
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 01, 2024 - Viewed 697 times

DIGICO SD8 (YOM: 2010) (S#'S: 800250 AND IN COMMENTS) SUPERB (8-9) UPDATES (READ BELOW):

THEY HAVE JUST BEEN UPGRADED TO DIGICO'S CORE 2 SOFTWARE WHICH SIGNIFICANTLY INCREASES CAPABILITIES AS FOLLOWS:

• INPUT CHANNELS FROM 60 >120

• BUSSES FROM 24 TO 48

• MATRIX FROM 12 TO 16

• MULTIBAND COMPS FROM 12 TO 190

• DYNAMIC EQ FROM 12 TO 190

• DIGITUBES FROM 12 TO 190

• FX FROM 12 TO 16

• CONTROL GROUPS FROM 12 TO 24

FEATURES:

• PERSONAL MIXER,  ORIGINAL GOLD AND BLACK TRIM
• 37 X 100MM TOUCH-SENSITIVE, MOTORISED FADERS
• 1 X 15" (38CM) LCD HIGH - RESOLUTION TOUCH SCREEN
• 38 X 20-SEGMENT LED BARGRAPH METERS
• 60 MONO OR STEREO INPUT CHANNELS
• 24 MONO OR STEREO BUSSES + LR MASTER
• 2 STEREO SOLO BUSSES MATRIX
• 12 X 12 MATRIX (ADDITIONAL TO BUSSES ABOVE)
• 12 CONTROL GROUPS, SELECTABLE FOR VCA-STYLE, MOVING FADER, MUTE GROUP
• 12 GRAPHIC EQ'S 32-BAND, GAIN +/- 12DB
• INTERNAL FX
• 6 STEREO FX PROCESSORS
• LOCAL I/O 8 X MIC/LINE I/O, 8 X AES I/O (4 STEREO PR)
• MADI INTERFACE, 2 REDUNDANT INTERFACES, 75 OHM BNC CONNECTIVITY
• MIDI INTERFACE
• VGA PORT FOR EXTERNAL SCREEN, DB-15 MINI-FEMALE (1024 X 768 RESOLUTION)
• USB 2.0 PORTS (3)
• EXT SYNC, WORD CLOCK, AES, MADI,
• HEADPHONE - TRS UNBALANCED / 8-600 OHMS - 1/4 INCH JACK

EXTRAS:

• INCLUDES DIGICO ROAD CASE, DUST COVER, LED LITTLELITES, KEYBOARD, 2 X 100M BNC SNAKE

MODIFICATIONS:

• VERY LOW HOURS, JUST RETURNED FROM INSPECTION @ DIGICO DISTRIBUTOR

HISTORY:

• MY OWN PERSONAL TOURING & CORPORATE EVENT MIXER
• I DOUBT IT'S POSSIBLE TO FIND AN SD8 IN BETTER SHAPE AND LOWER HOURS THAN THIS ONE.

COMMENTS:

• LOW HOURS, NEEDS NOTHING, JUST RETURNED FROM COMPLETE DIAGNOSTIC/ MINOR REPAIRS BY U.S. DISTRIBUTOR
• THIS UNIT WAS TOURED
• SD8 CONSOLE S/N 800250 9002
• MADI RACK S/N 800271 9003
• MADI BNC CABLES (2) ARE 100 METERS LONG

ALL EQUIPMENT IS STORED IN A HEAT-HUMIDITY-CONTROLLED WAREHOUSE.

REGARDING MAINTENANCE:

• CONSOLE WAS FOR AND USED ON, 3 ZZ TOP TOURS WITH ME WHEN FIRST DELIVERED AND MAINTAINED BY CLAIR WHEN WE WERE NOT ON TOUR.
• FOR THE LAST 9 YEARS THEY HAVE BEEN USED ONCE A YEAR FOR A WEEK-LONG HOUSE OF WORSHIP XMAS CONCERT, AGAIN OPERATED AND MAINTAINED BY ME.
• THE DESK WAS ALSO BACK TO DIGICO DISTRIBUTOR/ SERVICE STATION, GROUP ONE TWO YEARS AGO; THE SCREEN WAS RECALIBRATED, A COUPLE OF FADERS WERE REPLACED, ALL FADERS THEN CALIBRATED, AND THE DESK WAS COMPLETELY TESTED.
• MADI RACK DOES NOT HAVE A CASE AS THAT R&R CASE HAS BEEN REPURPOSED FOR MY SD RACK
