ID # 110511    CURRENT CATEGORY - INTERCOM

For Sale: TELEX BTR 800 WIRELESS INTERCOM SYSTEM WITH 4 TR 825 PACKS AND HEADSETS - LEGAL E88 BAND
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on August 28, 2018 - Viewed 88 times

TELEX BTR 800 WIRELESS INTERCOM SYSTEM WITH 4 TR 825 PACKS AND HEADSETS - LEGAL E88 BAND

TELEX BTR 800 (YOM: 2015) (S#: 9160 800) SUPERB (8-9) FEATURES:

TELEX BTR 800 WIRELESS INTERCOM SYSTEM WITH 4 TR825 PACKS - LEGAL E88 BAND.

ALMOST LIKE NEW.

PROVENANCE OF THE SYSTEM:

BOUGHT FROM A TELEX RESELLER IN SUMMER 2015

USED FOUR PACKS ON A 6 WEEK SHOW IN FALL 2015

USED THREE PACKS FOR A THREE WEEK SHOW IN FALL 2016;

HAD BOSCH DO A FULL SYSTEM MAINTENANCE IN SPRING 2017 (WILL PROVIDE THE PAPERWORK)

USED ONE PACK ON A TWO WEEK SHOW IN SUMMER 2017.

OTHER THAN THAT THE SYSTEM HAS BEEN IN STORAGE.

THE PACKS HAVE ONLY MINOR SCRATCHES FROM NORMAL USE, ALMOST LIKE NEW. BASE STATION LOOKS NEW.

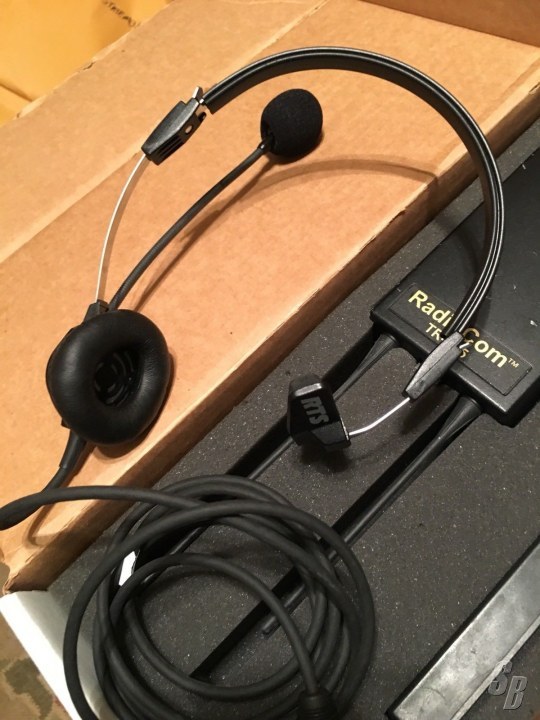

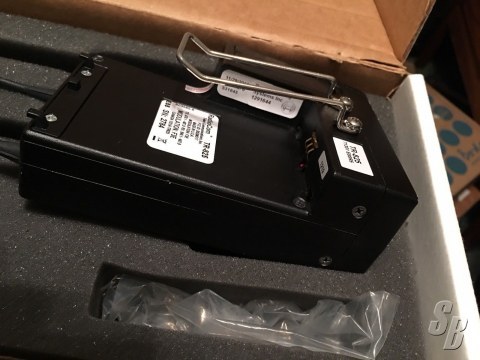

COMES WITH THE BTR 800 BASE STATION, FOUR TR825 BINAURAL PACKS WITH AA BATTERY PACKS, TWO 1/4 WAVE ANTENNAS, FOUR TELEX PH88R5 HEADSETS IN LIKE NEW CONDITION, ORIGINAL BOXES.


B&H AND OTHER RETAILERS SELL THESES ITEMS AT THE FOLLOWING PRICES NEW:

BASE STATION: $5137

TR 825: $2418 EA.

PH 88 R5 HEADSETS: $199 EA.

SAVE THOUSANDS ON THIS SYSTEM.


BELOW ARE THE TECH SPECS:


TELEX TR-825 HIGHLIGHTS:

2-CHANNEL BINAURAL UHF OPERATION

FULL DUPLEX COMMUNICATION

A5M TELEX

LCD INTERFACE

CHANNEL SEARCH

BATTERY POWERED

FEATURES

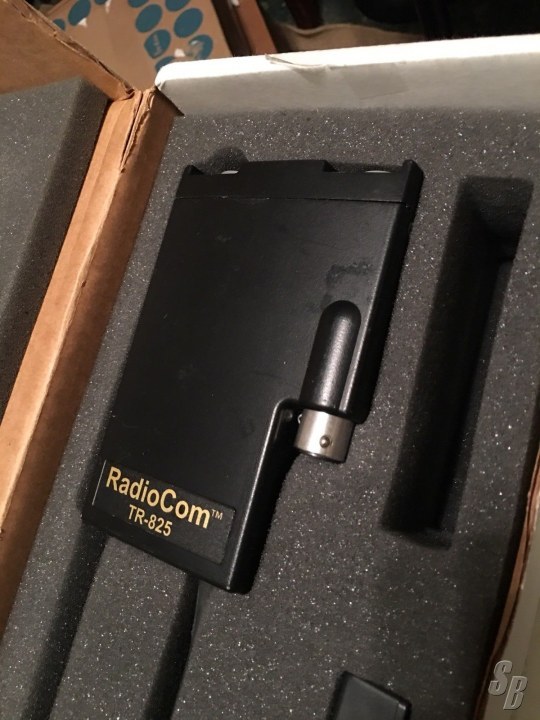

THE TELEX TR-825 2-CHANNEL BINAURAL UHF TRANSCEIVER (A5M TELEX, E88: 590-608MHZ RECEIVE/470-488MHZ TRANSMIT) IS A 2-CHANNEL, BINAURAL UHF FREQUENCY-AGILE WIRELESS BELTPACK FOR USE WITH THE BTR-800. THE UNIT FEATURES A DURABLE MET-CAST MAGNESIUM CASE, AN LCD BASED GRAPHICAL USER INTERFACE, AND STAGE ANNOUNCE ACTIVATION.


THE TR-825 IS DESIGNED WITH SEVERAL ADVANCED TECHNOLOGY FUNCTIONS, INCLUDING WIRELESS TALK AROUND (ISO) ACTIVATION, THE PATENTED ENHANCED CLEARSCAN CHANNEL SEARCH, DETACHABLE ANTENNAS AND AN AUTO-SENSING HEADSET CONNECTOR THAT AUTOMATICALLY SWITCHES BETWEEN ELECTRET AND DYNAMIC HEADSET MICS.

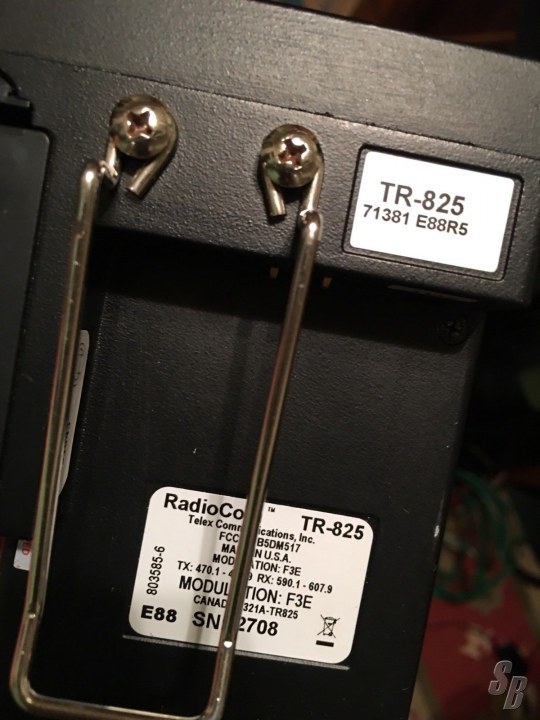

THIS UNIT HAS AN A5M TELEX HEADSET JACK AND WORKS IN THE E88: 590-608MHZ RECEIVE/470-488MHZ TRANSMIT FREQUENCY RANGE.

RUGGED ALL-METAL 2-CHANNEL WIRELESS UHF BELTPACK WITH DETACHABLE, COLOR CODED 1/4 WAVE ANTENNAS ON STUD TYPE CONNECTORS

DUAL, LATCHABLE A AND B CHANNEL TALK BUTTONS, FULL LED COMPLEMENT FOR ALL FUNCTIONS

CAST MAGNESIUM CONSTRUCTION FOR INCREASED DURABILITY, LIGHTER WEIGHT

HUGE SELECTION OF UHF FREQUENCIES IN 18 MHZ OPERATIONAL BANDS, 24 FACTORY PRESET GROUPS

1000' LINE-OF-SIGHT RANGE, AA OR NIMH RECHARGEABLE BATTERY OPERATION WITH UP TO 12-HR. CONTINUOUS BATTERY LIFE

PROPRIETARY INTELLIGENT POWER CONTROL DECREASES OUTPUT POWER OF BELTPACK IN CLOSER PROXIMITY TO BASE STATION BY 10 DB, ELIMINATES BASE STATION FRONT-END OVERLOAD AND DESENSING

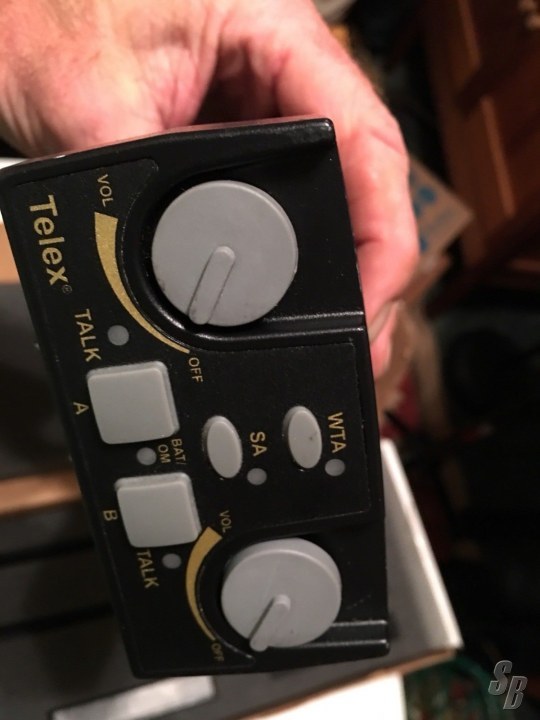

INDIVIDUAL ON/OFF AND VOLUME CONTROL KNOBS, TALK BUTTONS WITH LATCHING FUNCTION WITH EASY TOP PANEL ACCESS

TOP PANEL BATTERY/OVERMODULATION AND TALK LED LIGHTS

AUTOMATIC DYNAMIC OR ELECTRET MIC TYPE DETECTION

MENU AND SET, UP AND DOWN REAR PANEL PARAMETER AND NAVIGATION BUTTONS WITH LCD DISPLAY FOR SIMPLIFIED CONTROL


TELEX BTR-800 HIGHLIGHTS

UHF WIRELESS COMMUNICATION

CLEARSCAN CHANNEL SEARCH

TALK/LISTEN STATION

BACKLIT DISPLAY

FEATURES

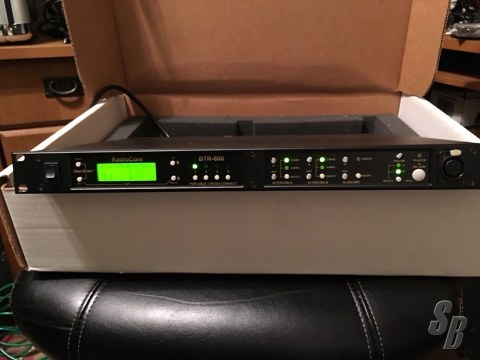

THE TELEX BTR-800 IS A 2-CHANNEL, FREQUENCY-AGILE UHF WIRELESS INTERCOM BASE STATION, WITH CHANNEL ACCESS FROM EACH OF FOUR FULL-DUPLEX BELTPACKS, STAGE ANNOUNCE OUTPUT WITH RELAY CLOSURE, WIRELESS TALK AROUND (ISO), THE PATENTED ENHANCED CLEARSCAN CHANNEL SEARCH FEATURE, AND A TALK/LISTEN HEADSET STATION AT THE BASE.


THE BTR-800 FEATURES A TRANSPARENT GRAPHICAL USER INTERFACE AND A BACKLIT DISPLAY, WITH ADVANCED TECHNOLOGY FUNCTIONS SUCH AS COMBINATION TONE CODE/RF NOISE SQUELCH AND DSP DIGITAL AUDIO PROCESSING.

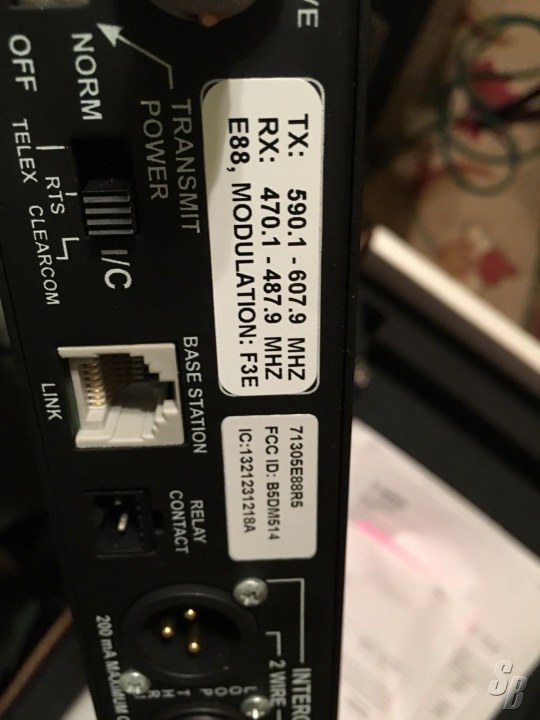

THIS UNIT HAS AN A5F RTS HEADSET JACK AND WORKS ON E88: 590-608MHZ TRANSMIT/470-488MHZ RECEIVE FREQUENCIES.

WIRELESS UHF INTERCOM BASE STATION WITH FREQUENCY AGILITY, FULL-DUPLEXING, AND HUGE SELECTION OF AVAILABLE FREQUENCIES ORGANIZED IN INDEPENDENT 18MHZ BANDS

FACTORY SELECTED PRESET FREQUENCY GROUPS, 1000' OPERATING RANGE, TRANSMIT POWER LEVEL SWITCH

INDEPENDENT FRONT PORTABLE STATION ENABLE/DISABLE BUTTONS WITH LED STATUS INDICATORS, TELEX OR RTS FRONT PANEL 4-PIN HEADSET CONNECTOR READS DYNAMIC OR ELECTRET HEADSET BOOM MIC TYPE AUTOMATICALLY

ENHANCED CLEARSCAN TWO-BUTTON FREQUENCY SELECTION FOR OPTIMAL, INTERFERENCE- AND INTERMODULATION-FREE LOCATION USE, RANKS AVAILABLE FREQUENCIES IN ORDER OF RELIABILITY

SIMULTANEOUS SUPPORT OF UP TO 4 BELTPACKS, EXPANDABLE

LARGE BACKLIT LCD, TRANSPARENT, MENU-DRIVEN GRAPHIC USER INTERFACE FOR SIMPLIFIED NAVIGATION AND ASSIGNMENT

FULL FUNCTION TALK/LISTEN HEADSET STATION WITH DEDICATED HEADSET AND BOOM MIC VOLUME AND GAIN CONTROLS ,ALLOWS FOR FIFTH SIMULTANEOUS USER(DIRECTOR, PRODUCER, ENGINEER) ON INTERCOM CHANNEL

COMPATIBILITY WITH AUDIOCOM, CLEAR-COM, RTS/RTS MATRIX WIRED AND WIRELESS INTERCOMS, DEDICATED 2-WIRE XLE AND 4-WIRE RJ-11 CONNECTORS

DUAL VOLTAGE POWER SUPPLY FOR INTERNATIONAL USE, XLR BALANCED AUXILIARY AUDIO INPUT AND OUTPUT CONNECTIVITY

EXTRAS:

NO

MODIFICATIONS:

NO

HISTORY:

IN DESCRIPTION

COMMENTS:

NONE

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 110511
Listing Type:
Standard
Model: BTR 800
Manufacturer: TELEX
Condition: SUPERB (8-9)
Shipping Info: 20.00 lbs., 24" X 16" X 10"
Seller's Location: CA, USA
Updated: August 28, 2018
M.S.R.P.: $15,000.00
Offered at: $7,650.00
